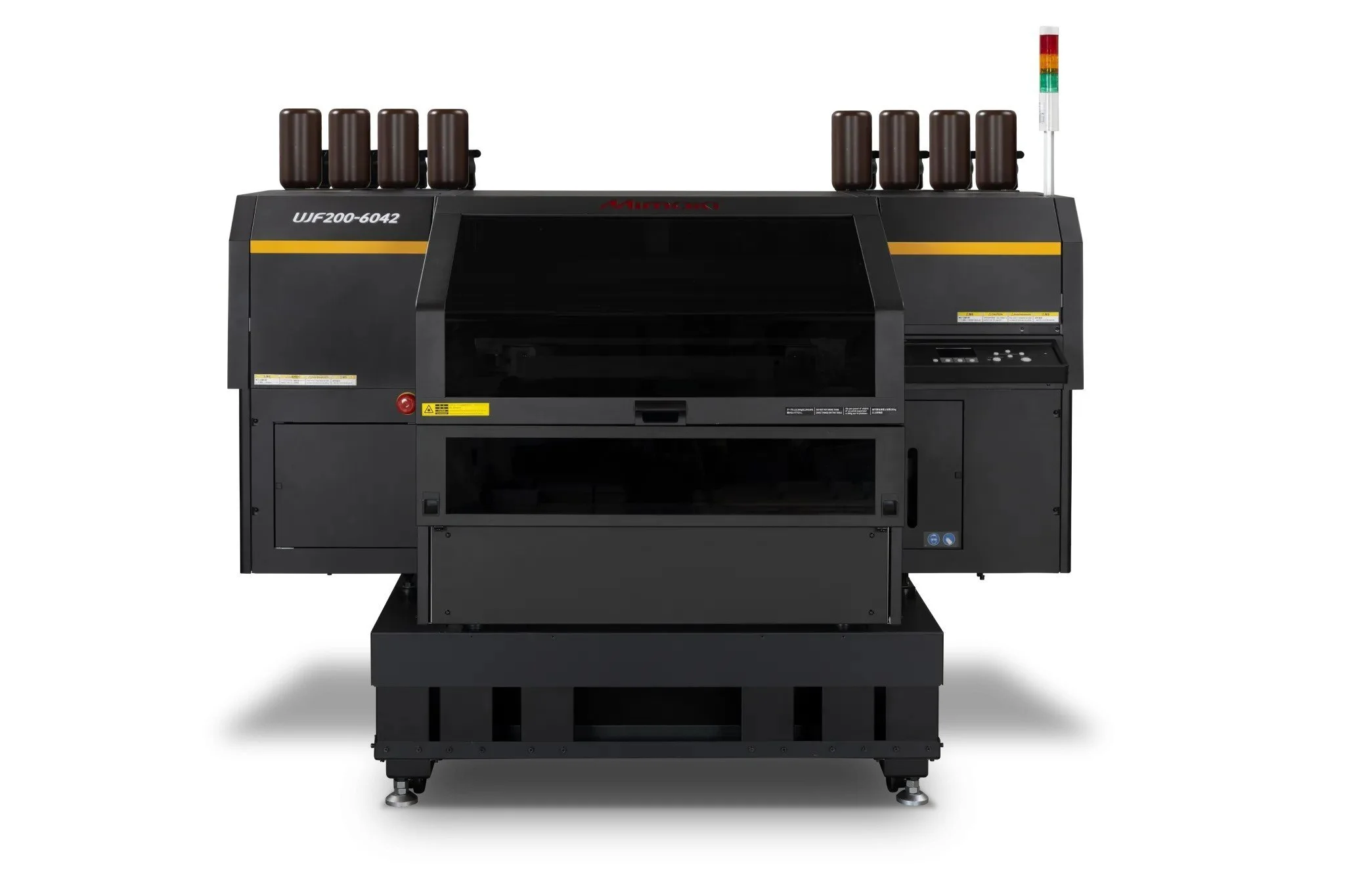

New for 2026 and the successor to the UJF-6042 MkII e, the Mimaki UJF200-6042 is a benchtop UV-LED flatbed for printing directly onto rigid and dimensional objects. Its larger A2-class table, 9.8-inch object clearance, and optional camera and belt-table automation make it ideal for personalized products, promotional items, signage, and industrial part marking.
330 Series print head with MAPS4: Smooth gradients, fine lettering, and reduced banding with simple maintenance.
White ink circulation (MCT): Prevents pigment settling for dependable white and opaque printing.
Vacuum table: 16.5" x 24" table with threaded registration points for jigs and fixtures.
Advanced object sensor: Detects object thickness, including transparent items, and sets head height automatically.
Optional camera positioning: Recognizes the position and angle of multiple objects for faster, more accurate batch printing.
Optional belt-table automation: Continuous feed for higher-volume production.
Expanded ink set: White, clear, primer, light colors, and new fluorescent Pink & Yellow.
Mimaki core technologies: Nozzle Recovery System, Nozzle Check Unit, Mimaki Bulk Ink System, and Uninterrupted Ink Supply System.
Key Specifications
Print area: 23.6" x 16.5" (A2 class)
Max object thickness: 9.8"
Max object weight: 44 lb
Max resolution: 1800 dpi
Speed: up to 11.3 tables/hr (4-color, 600x900, 6-pass)
Available colors: CMYK, Lc, Lm, White, Clear, Primer, Fluorescent Yellow, Fluorescent Pink
Contact ImageTech for pricing and a demo in our Oakland showroom.New for 2026, the UJF200-6042 is Mimaki’s A2-size benchtop UV-LED flatbed for personalized products, promotional items, and industrial part marking. It replaces the UJF-6042 MkII e, handles thicker and heavier objects, offers optional camera and belt units for automated production, and supports new fluorescent Pink and Yellow UV inks. Contact ImageTech for pricing and demos.
