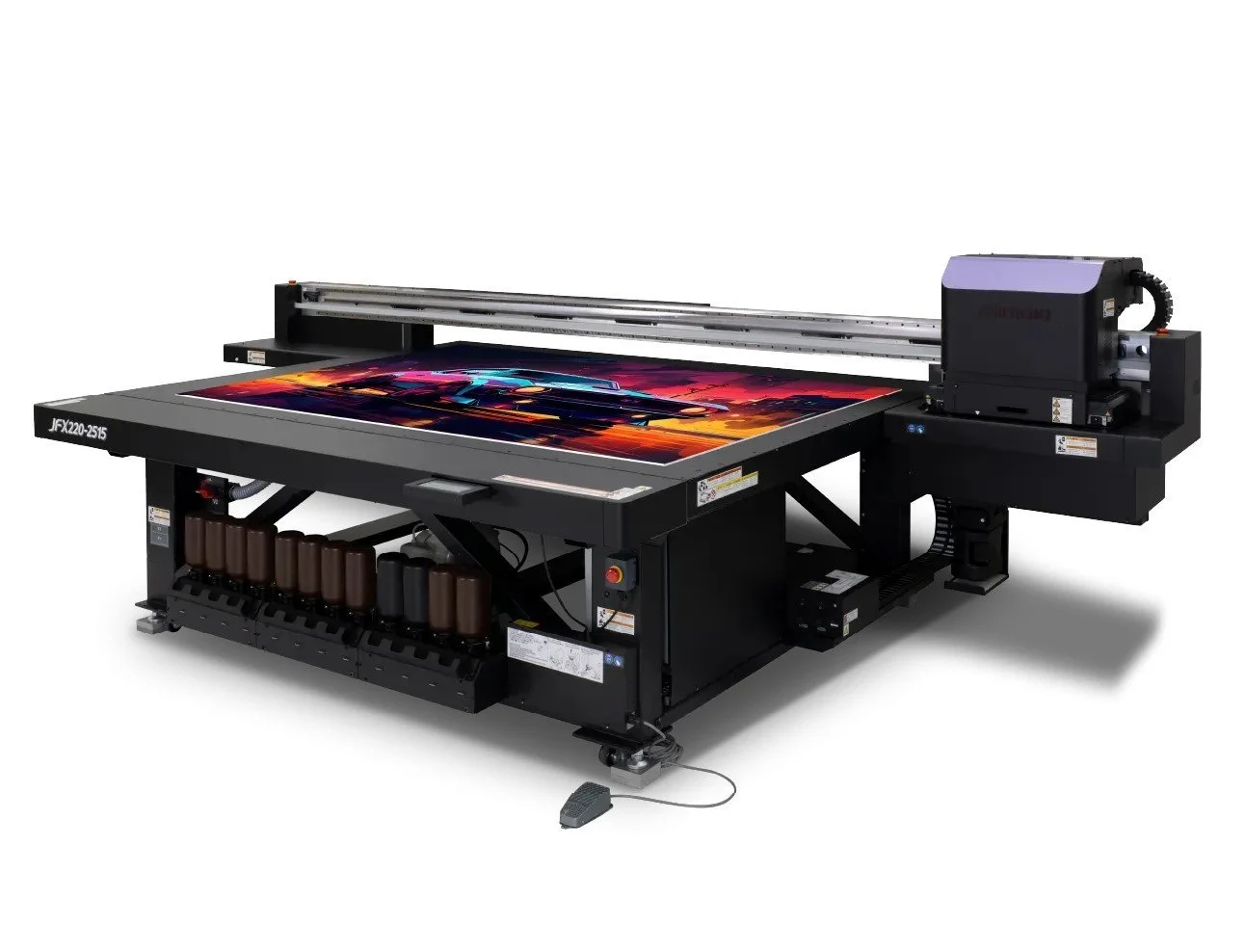

New for 2026, the Mimaki JFX220-2515 is a mid-range, 4' x 8'-class UV-LED flatbed built for sign, graphics, and specialty print shops that need more productivity and versatility without stepping up to a production-class platform. It prints directly onto rigid boards and objects up to 4 inches thick, from signage and displays to packaging, acrylic, and wood panels.
ANCHOR TECHNOLOGY vacuum: Concentrates vacuum under the media you place and seals unused holes, dramatically reducing masking, taping, and prep time.
Four staggered print heads: Up to 1200 dpi with a 5 pl minimum drop for smooth solids and crisp fine detail.
Touchscreen-activated registration pins: Pins rise for fast, repeatable setup and retract automatically before printing.
Fluorescent Pink & Yellow inks: Neon colors that go beyond standard CMYK for eye-catching retail and promotional work.
Thick media capability: Up to 4" substrate thickness for dimensional and specialty applications.
Mimaki core technologies: Nozzle Recovery System, Nozzle Check Unit, Mimaki Bulk Ink System, and Mimaki Advanced Pass System for consistent, high-uptime production.
Key Specifications
Print area: 98.4" x 59.1"
Max media thickness: 4"
Max resolution: 1200 dpi
Speed: up to 452 sq ft/hr (4 color + white, 300x300 HQ, 4-pass)
Available colors: CMYK, Lc, Lm, White, Clear, Primer, Fluorescent Yellow, Fluorescent Pink
Ink types: ELS-120, PR-200, ELH-100, EFS-150
Contact ImageTech for pricing, configuration, and a demo in our Oakland showroom.Mimaki’s new mid-range, large-format UV-LED flatbed (launched 2026). Features Mimaki’s ANCHOR TECHNOLOGY media vacuum system for faster media setup and less print prep, plus optional fluorescent Pink and Yellow UV inks for vivid neon colors. Ideal for signage, displays, and rigid-substrate production. Contact ImageTech for pricing, demos, and configuration.
