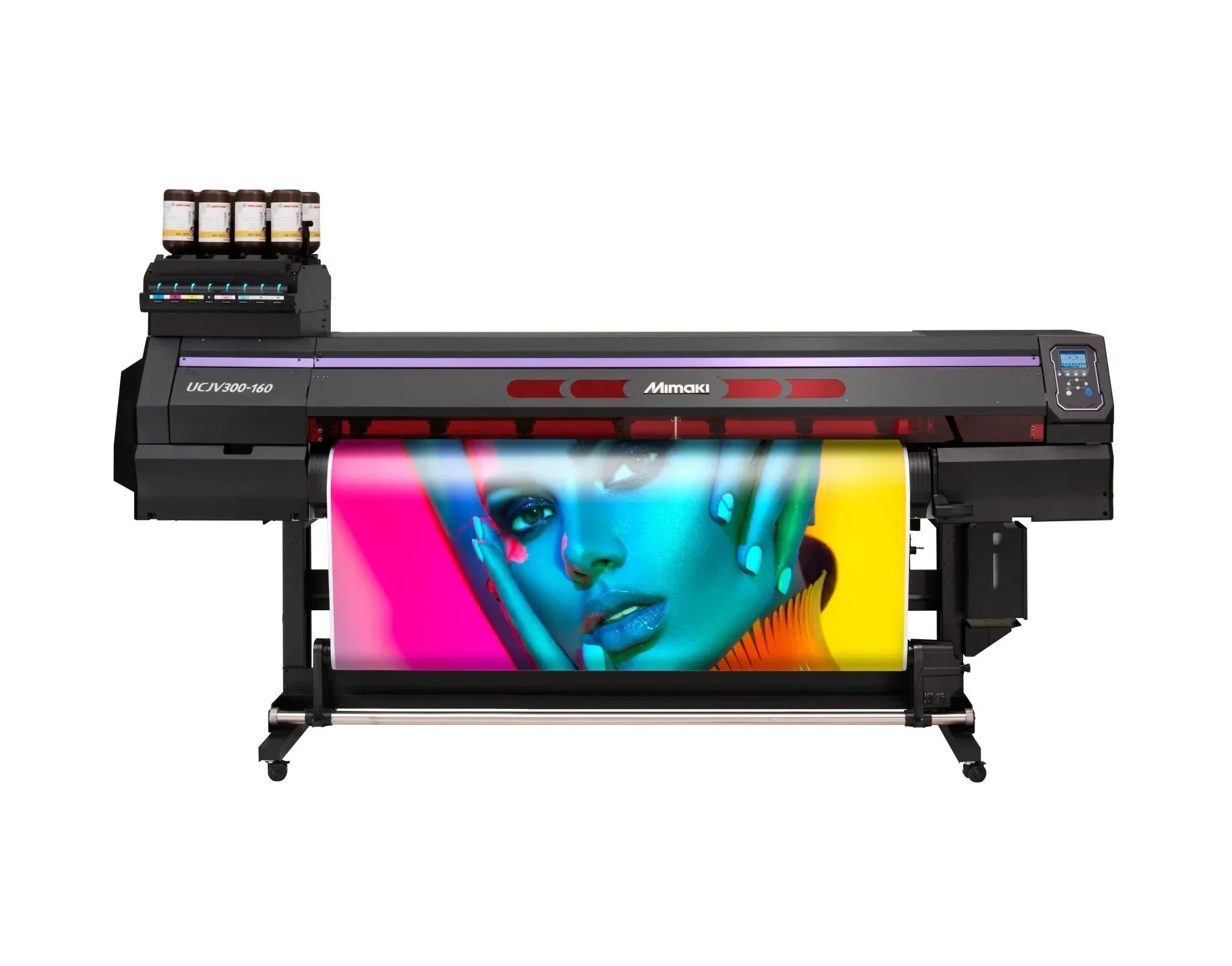

The Mimaki UCJV300-160 combines 64" UV-LED printing and contour cutting in a single device, making it a versatile workhorse for stickers, decals, labels, and signage. Because UV-LED ink cures instantly, prints come off the machine dry and ready to cut, laminate, or install, with no outgassing wait.
Integrated print and cut: Prints and contour cuts in one continuous operation.
Instant UV-LED curing: Fast startup, low heat, and precise control for heat-sensitive media.
Multi-layer printing: Up to 5-layer day/night, backlit, and double-sided graphics.
Optional clear ink: Add textured, gloss, or matte spot effects.
Variable-droplet piezo heads: Dual inline heads with 7-28 pl droplets.
Precision cutting functions: Continuous Mark, ID Cut, Half Cut, Zero Margin Mark, and Over Cut.
1 L bottle ink supply: Easy loading and long unattended runs.
Mimaki Workflow: Remote status monitoring and panel operation.
Key Specifications
Max print width: 64"
Max resolution: 1200 dpi
Speed: up to 277.7 sq ft/hr (4-color, 300x600, 4-pass)
Ink configurations: 4, 6, or 8 colors including White and Clear
Ink types: LUS-170, LUS-200
Contact ImageTech for pricing and a demo in our Oakland showroom.64” UV-LED roll-to-roll print-and-cut system. UV-LED curing means prints are dry instantly and can be contour cut, laminated, or installed right away. Up to 1200 dpi with 4, 6, or 8 ink-channel configurations including white and clear for backlit and specialty graphics. Contact ImageTech for pricing and demos.
