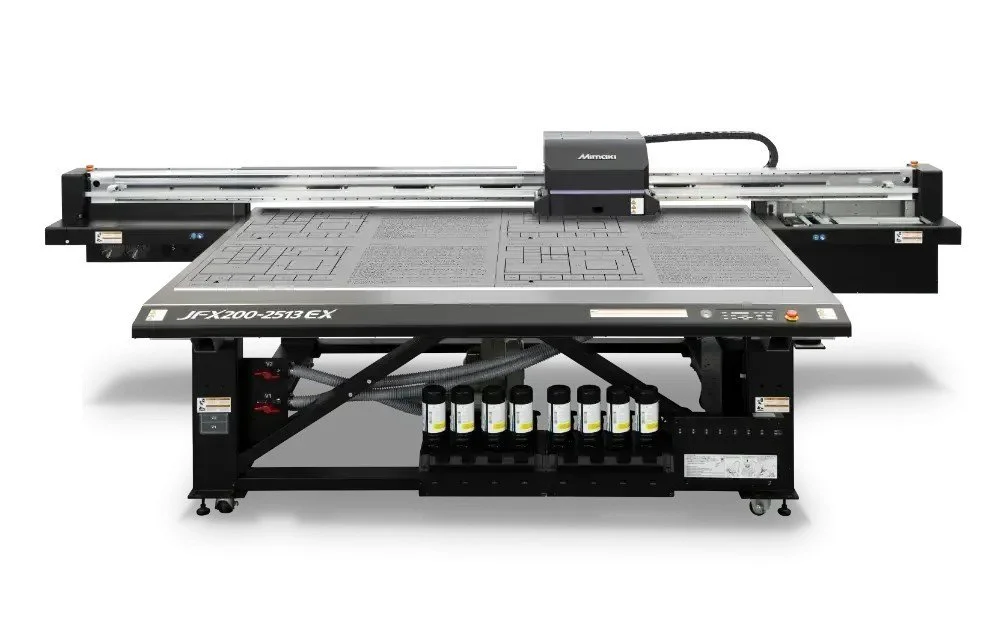

The Mimaki JFX200-2513 EX prints full 4' x 8' boards or pre-cut substrates up to 2 inches thick at up to 12 boards per hour. It's a proven choice for signage, displays, and packaging as well as industrial work such as component marking, membrane switches, and dashboard panels, and it can build 2.5D raised textures for premium effects.
Staggered high-resolution heads: Up to 1200 dpi with a 5 pl minimum drop.
Two vacuum zones: Foot-switch controlled for quick media loading.
Automatic gap pins: Measure media thickness and set head gap automatically.
Media jam sensors: Left and right sensors help prevent head damage.
Flexible ink supply: 1 L or 250 ml bottles, including the Mimaki Bulk Ink System (MBIS).
Mimaki core technologies: Nozzle Recovery System, Nozzle Check Unit, Mimaki Circulation Technology, and Waveform Control.
Key Specifications
Bed size: 98.4" x 51.2"
Max media thickness: 2"
Max resolution: 1200 dpi
Speed: up to 376.7 sq ft/hr (4 color + white, 300x300 HQ, 4-pass)
Available colors: CMYK, Lc, Lm, White, Clear, Primer
Ink types: LUS-120, LH-100, LUS-150, PR-200, LUS-350, LUS-211
Contact ImageTech for pricing and a demo in our Oakland showroom.
