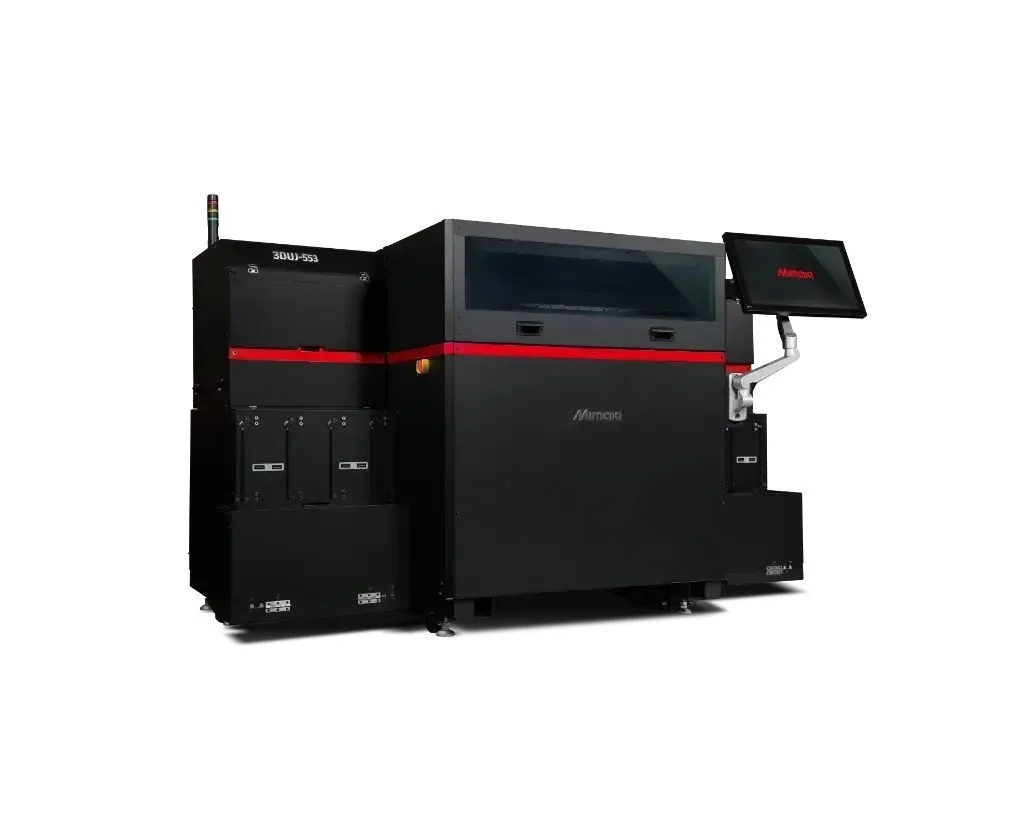

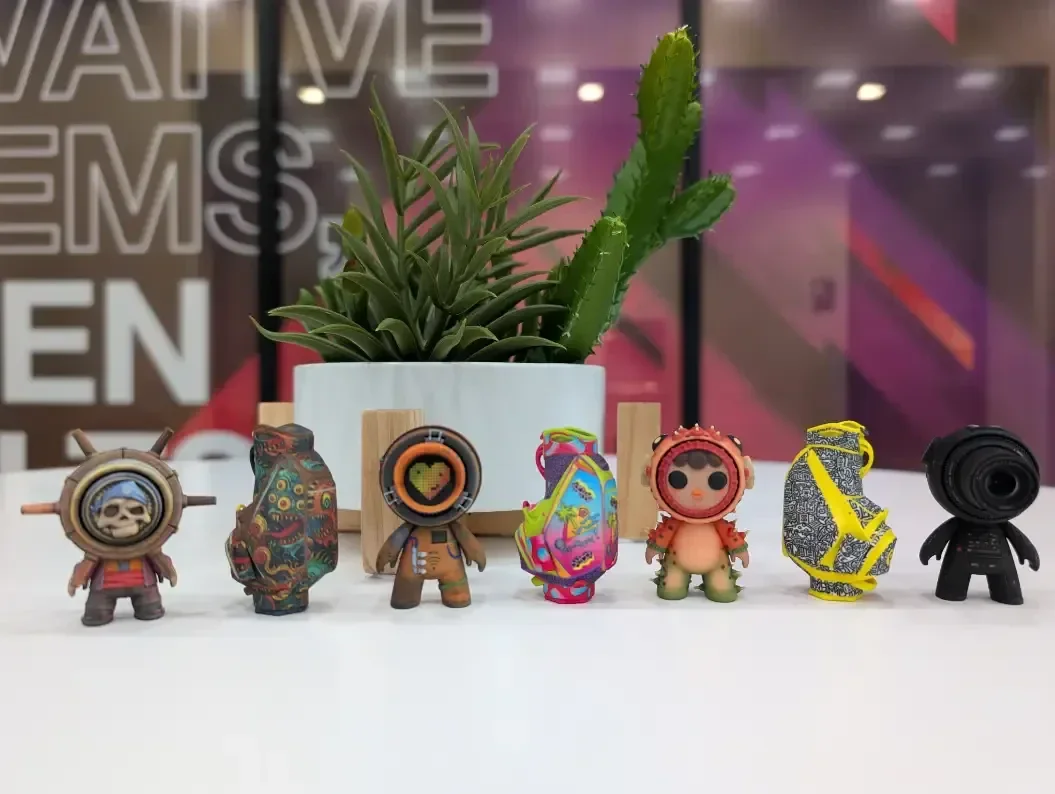

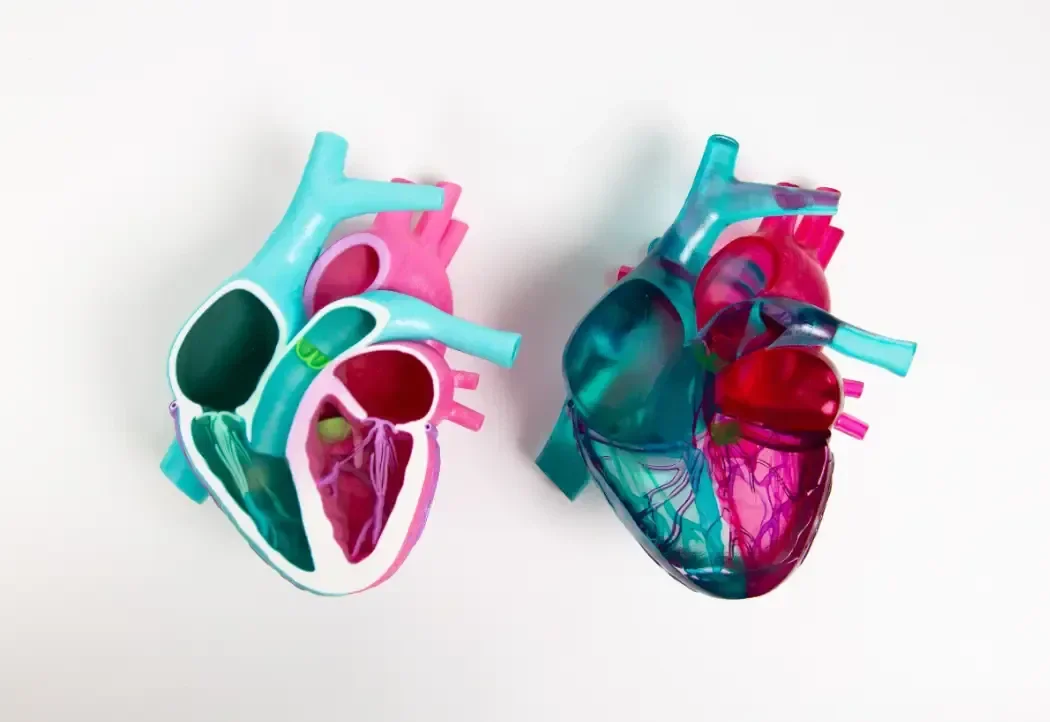

The Mimaki 3DUJ-553 is a UV-LED full-color 3D printer capable of more than 10 million colors, producing photorealistic, color-managed models with detail down to 1 pt lines. It's built to take shops from prototyping into production for figurines and character models, marketing samples, educational, scientific, and medical models, and product design prototypes.
10 million+ colors: Full CMYK plus white and clear for true-to-life color reproduction.
Eight in-line piezo heads: 7 variable drop sizes for fine detail and smooth surfaces.
Water-soluble support material: Dissolves cleanly for easy post-processing of complex shapes.
Low-heat UV-LED curing: Fast startup, energy efficiency, and long lamp life.
Ink circulation: Continuously cycles ink through sub-tanks and heads for reliability.
Large LCD touch panel: Real-time print status at a glance.
Key Specifications
Build area: 20" x 20" x 12" (508 x 508 x 305 mm)
Max build weight: 154.3 lb (70 kg)
Max resolution: 600 x 300 x 1,270 dpi
Minimum layer thickness: 19 microns
Colors: CMYK, White, Clear Gloss, Pure Clear, Support
Ink types: MH100, MH110, SW100 (support)
Contact ImageTech for pricing and sample prints.
