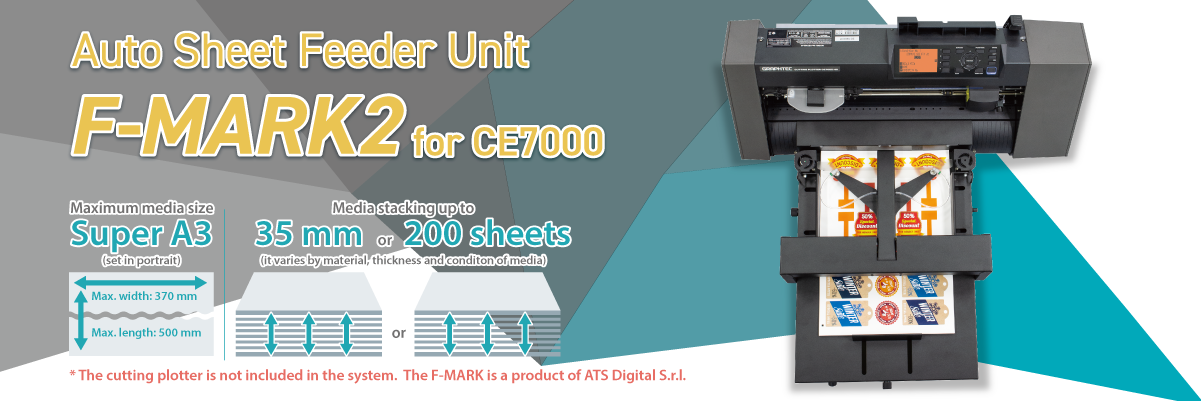

Graphtec Auto Sheet Feeder Unit F-MARK2 for CE7000
Continuous Hands-Free Sheet Media Loading and Processing
The F-MARK2 Automatic Sheet Feeder Unit, which includes the Graphtec CE7000-40 cutter, is designed to automatically feed and contour cut media without the need for an operator. It enables to significantly improve productivity in cutting a large number of media with the same patterns.
Cut labels and cut time with the new Graphtec F-MARK2 Automatic Sheet Feeder Unit.
* F-MARK2 is produced by ATS Digital S.r.l.
Increases production efficiency by automatic reloading
The auto sheet feeder reloads the media to the cutting plotter automatically. The cutting process is executed repeatedly with replacing the media. It enables to significantly improve productivity in cutting a large number of media with the same patterns. The following steps are automatically repeated continuity until specified number of copies are made.
Applications
It is suitable for post-processing of the printed media created with the print-on-demand in small production runs for producing various products such as labels, heat transfer sheets for custom apparel and the POP as table advertising.
Half-Cut: Creating Labels
Perforation Cut: Creating POP Advertising
Digital Cutting Software “iMark Plus” (for Windows)
Dedicated software controls the auto sheet feeding system and transfers contour cutting data to the plotter.
The system includes dedicated application software. After media is loaded, the attached camera quickly detects 2-point reference marks and corrects alignment before contour cutting data is transferred, giving you the perfect cut every time. The software configures cutting conditions such as number of copies, cutting force, cutting speed, offset, and number of paths, and it can import Adobe Illustrator or CorelDRAW EPS files as the contour data.
Designs created with any version of Illustrator or CorelDRAW need to be saved or exported in the specified format.
Continuous Hands-Free Sheet Media Loading and Processing
The F-MARK2 Automatic Sheet Feeder Unit, which includes the Graphtec CE7000-40 cutter, is designed to automatically feed and contour cut media without the need for an operator. It enables to significantly improve productivity in cutting a large number of media with the same patterns.
Cut labels and cut time with the new Graphtec F-MARK2 Automatic Sheet Feeder Unit.
* F-MARK2 is produced by ATS Digital S.r.l.
Increases production efficiency by automatic reloading
The auto sheet feeder reloads the media to the cutting plotter automatically. The cutting process is executed repeatedly with replacing the media. It enables to significantly improve productivity in cutting a large number of media with the same patterns. The following steps are automatically repeated continuity until specified number of copies are made.
Applications
It is suitable for post-processing of the printed media created with the print-on-demand in small production runs for producing various products such as labels, heat transfer sheets for custom apparel and the POP as table advertising.
Half-Cut: Creating Labels
Perforation Cut: Creating POP Advertising
Digital Cutting Software “iMark Plus” (for Windows)
Dedicated software controls the auto sheet feeding system and transfers contour cutting data to the plotter.
The system includes dedicated application software. After media is loaded, the attached camera quickly detects 2-point reference marks and corrects alignment before contour cutting data is transferred, giving you the perfect cut every time. The software configures cutting conditions such as number of copies, cutting force, cutting speed, offset, and number of paths, and it can import Adobe Illustrator or CorelDRAW EPS files as the contour data.
Designs created with any version of Illustrator or CorelDRAW need to be saved or exported in the specified format.
Continuous Hands-Free Sheet Media Loading and Processing
The F-MARK2 Automatic Sheet Feeder Unit, which includes the Graphtec CE7000-40 cutter, is designed to automatically feed and contour cut media without the need for an operator. It enables to significantly improve productivity in cutting a large number of media with the same patterns.
Cut labels and cut time with the new Graphtec F-MARK2 Automatic Sheet Feeder Unit.
* F-MARK2 is produced by ATS Digital S.r.l.
Increases production efficiency by automatic reloading
The auto sheet feeder reloads the media to the cutting plotter automatically. The cutting process is executed repeatedly with replacing the media. It enables to significantly improve productivity in cutting a large number of media with the same patterns. The following steps are automatically repeated continuity until specified number of copies are made.
Applications
It is suitable for post-processing of the printed media created with the print-on-demand in small production runs for producing various products such as labels, heat transfer sheets for custom apparel and the POP as table advertising.
Half-Cut: Creating Labels
Perforation Cut: Creating POP Advertising
Digital Cutting Software “iMark Plus” (for Windows)
Dedicated software controls the auto sheet feeding system and transfers contour cutting data to the plotter.
The system includes dedicated application software. After media is loaded, the attached camera quickly detects 2-point reference marks and corrects alignment before contour cutting data is transferred, giving you the perfect cut every time. The software configures cutting conditions such as number of copies, cutting force, cutting speed, offset, and number of paths, and it can import Adobe Illustrator or CorelDRAW EPS files as the contour data.
Designs created with any version of Illustrator or CorelDRAW need to be saved or exported in the specified format.
ItemPart NO.Auto Sheet Feeder UnitF-MARK2
UnitItemDescriptionWhole system
(Auto sheet feeder unit with cutter unit)Supported standard sized mediaA4 (297 x 210 mm), SRA4 (320 x 235 mm)
(It is loaded with landscape orientation.)A3 (297 x 420 mm), A3+ (typical 329 x 483 mm), SRA3 (320 x 450 mm)
(Loading is in portrait orientation.)Interface to PCSingle port of USB (The USB hub to connect the auto feeder unit and cutter unit is included.)Power source100 to 240 V AC (It is required three power outlet.)Operating environmentTemperature: 10 to 35°C
Humidity: 35 to 75 % RH (non-condensing)DimensionsWhen the entire system is placed on the table
– Size of the upper part from the table:
Approx. 772 (W) x 820 (D) x 313 (H) mm
– Size of the lower part from the table:
Approx. 772 (W) x 380 (D) x 420 (H) mm
* The CE7000-40 is placed to edge of table. Refer the illustration of Dimensions.WeightApprox. 27 kg
(Cutter unit (*1) : 13 kg, Auto feeder unit: 10 kg, Exit tray: 4kg)Auto sheet feeder unit
(F-MARK2)Supported mediaWidth: 279 to 370 mm, Length: 210 to 500 mm
(up to 700 mm when the option EXTENDER is installed.)Up to 350 g/m2
(It is the grammage of the media that can be handled by the automatic feeder unit.)Capacity of supply tray200 Sheets or up to 35mm height
(It varies by the material, thickness and condition of media.)InterfaceUSB 2.0Power sourceAC adapter, 100 to 240 V AC, Approx. 60 VA at output powerCompatible StandardsMain body : cNus(UL / cUL), CE mark, FCCAC adapter : UL, cUL, CE mark, FCC, PSE, CCCDigital Cutting SoftwareSupported OSWindows 11 (Home / Pro / Enterprise / Education)
Windows 10 / Windows 10×64 Edition (Home / Pro / Enterprise / Education)
Windows 8.1 / Windows 8.1×64 Edition (Windows 8.1 / Pro / Enterprise)Contour cutting data formatai (Illustrator version 8) and CorelDRAW eps
(The contour cutting data file contains only the contour cutting objects and reference marks and is saved in the specified format.)Cutter unit
(CE7000-40) (*1)Cutting speedMax. 600 mm/s all directionsAccelerationMax. 21.2 m/s2 (2.2 G) at 45° directionCutting forceMax. 4.41 N (450 gf) with CE7000-40InterfaceUSB 2.0(Full Speed)Power source100 to 240 V ACPower consumptionUp to 100WCompatible StandardsUL, cUL, CE mark, RoHS Directive
